This guide will explain how to increase your interior carcase thickness without it effecting the drawer thickness.
Useful for when you or clients want/need more structural integrity
Below thicknesses are examples only but steps remain the same
1. Change the Interior Material within the top title bar section to your larger carcase material, press tab on your keyboard or select another area of WoodCAM, then click Yes to the pop-up referencing the material change.
Example: ShopMaterials Available HMRPB 16.5 White Carcase > ShopMaterials Available HMRPB 25.5 White Carcase
Example: ShopMaterials Available HMRPB 16.5 White Carcase > ShopMaterials Available HMRPB 25.5 White Carcase

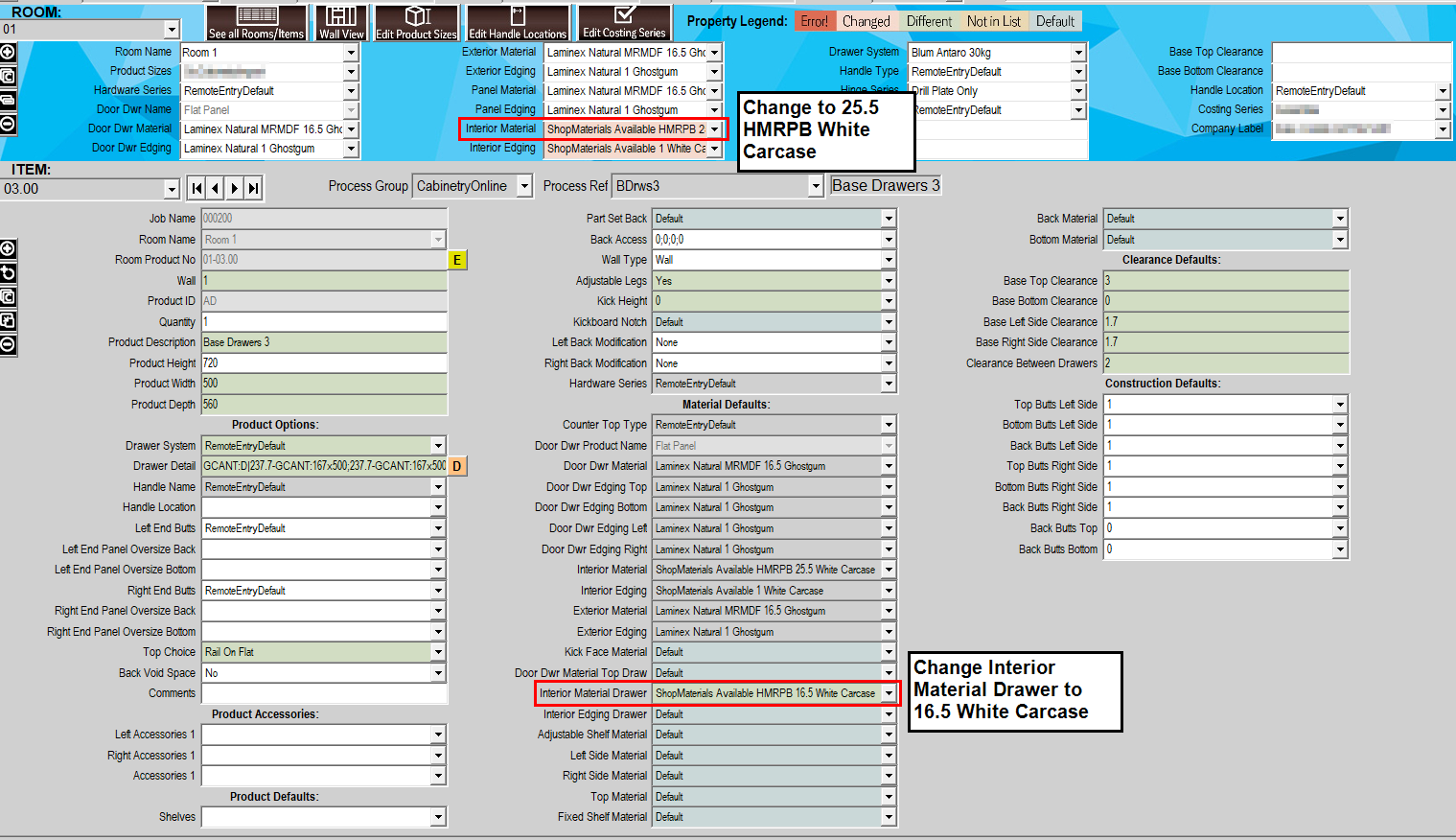

Image 1. WoodCAM Material Changes
Yes - Change any Matching Cabinet Property Values
No - Forcibly change all Cabinet Property Values
Cancel - Do not replicate the change

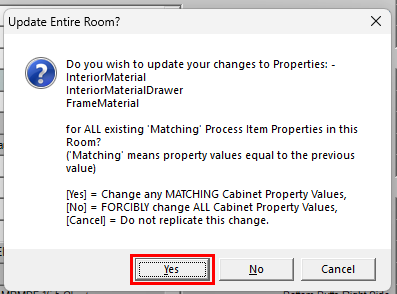

Image 2. Material Change Pop-Up
2. Under Material Defaults in WoodCAM, change the Interior Material Drawer to the material thickness required on the drawers bottoms & backs.

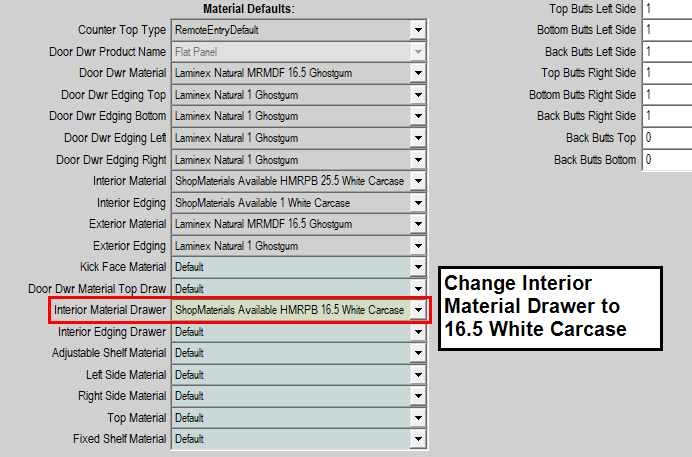

Image 3. Drawer Material Change
You will need to complete the above steps on every cabinet you required different material thicknesses on.
After completing the above, CADCode will display the following.

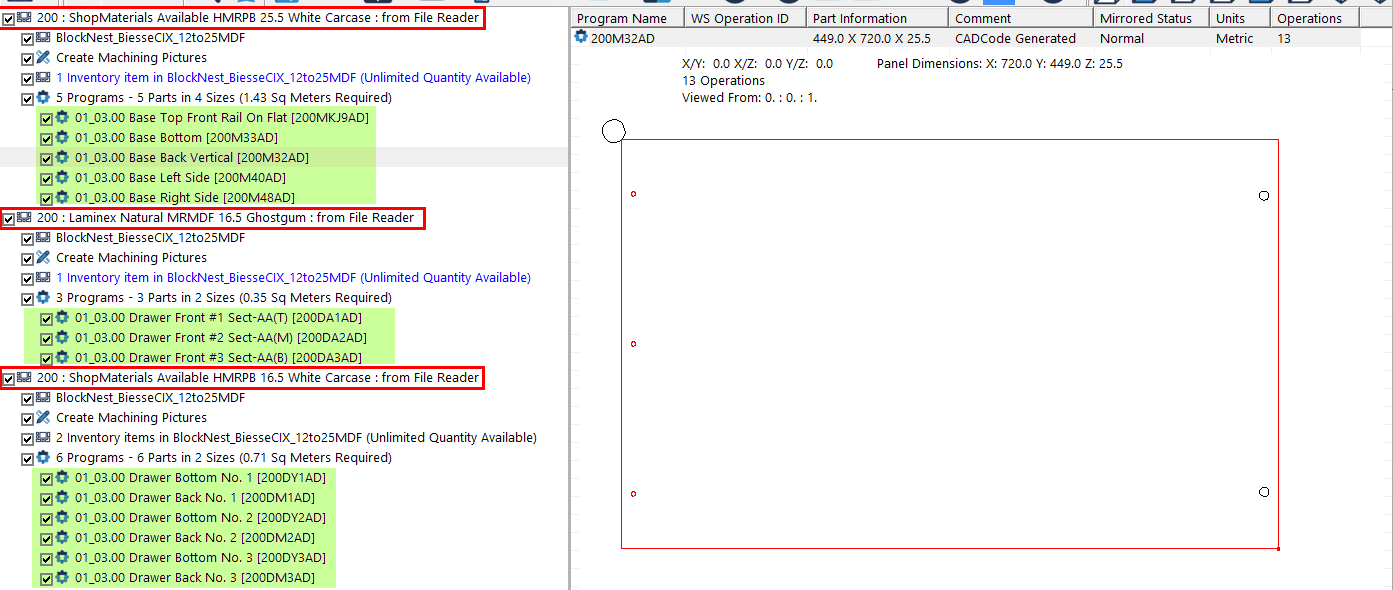

Image 4. CADCode Reference Image
