Overview

This guide is designed for new manufacturers or anyone who needs a refresher on the how to save a Cabinetry.Online job (csv file) and import it into WoodCAM.

• How to save a job from the Cabinetry.Online portal and import it to WoodCAM

_______________________________________________________________________________________________________________________________

Quick Tips

• Magnifying Glass
  Clicking on the magnifying glass allows you to use the search function.

Image 1. (Magnifying Glass)

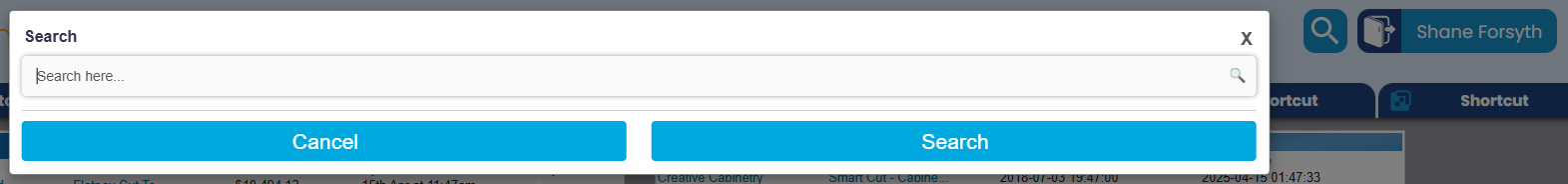

Image 2. (Search Bar Function)

• Download Job CSV

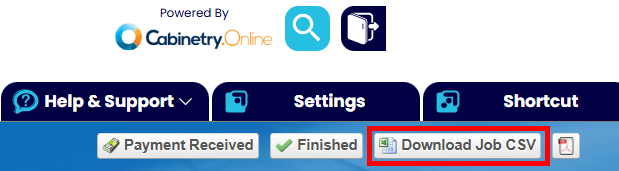

  To download a jobs CSV file (Needed for WoodCAM), click on the Download Job CSV option.

Image 3. (Download Job CSV Button)

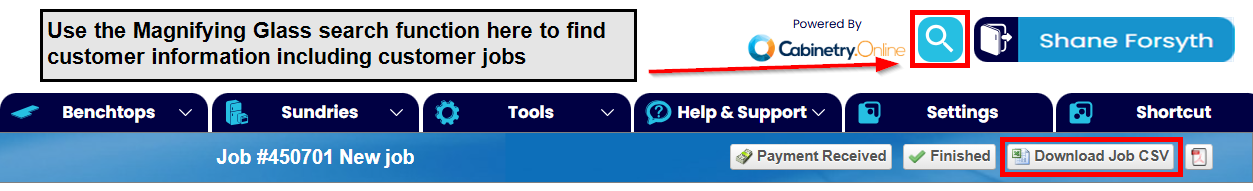

Image 4. (Overview of Job Page in Cabinetry.Online)

_______________________________________________________________________________________________________________________________

Import Cabinetry.Online Jobs to WoodCAM

Step 1.

Download Job CSV and move file to CabinetryOnlineImport folder

Click on the Produce Temp CSV button to download the CSV file, once downloaded, click and drag the file to your CabinetryOnlineImport folder.

Image 5. (Download Job CSV Button)

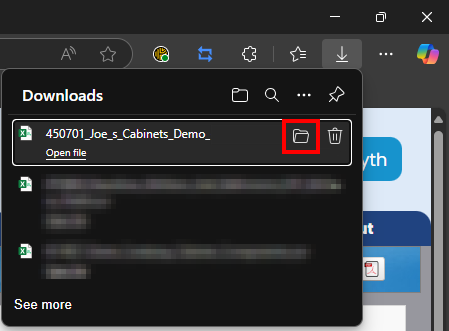

Image 6. (CSV File Downloading from Cabinetry.Online)

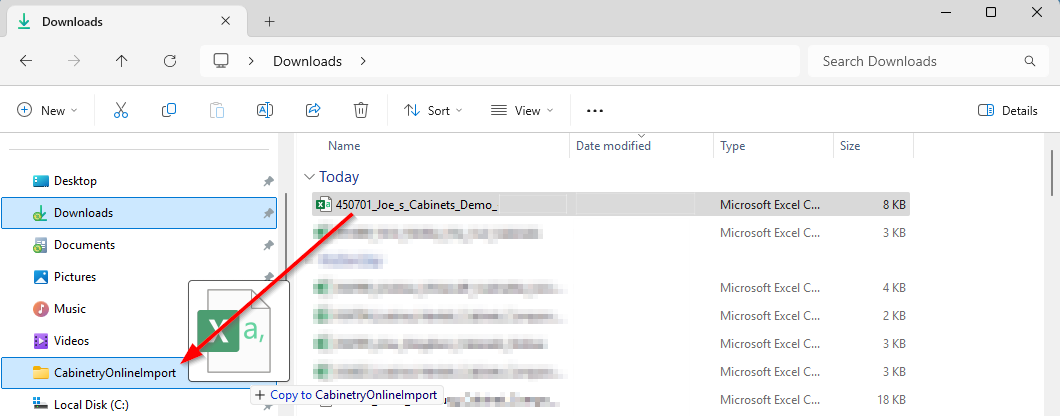

Click and drag file to CabinetryOnlineImport or right click, copy and paste into CabinetryOnlineImport folder.

Image 7. (Moving Downloaded CSV File)

_______________________________________________________________________________________________________________________________

Step 2.

Open WoodCAM & import job CSV file

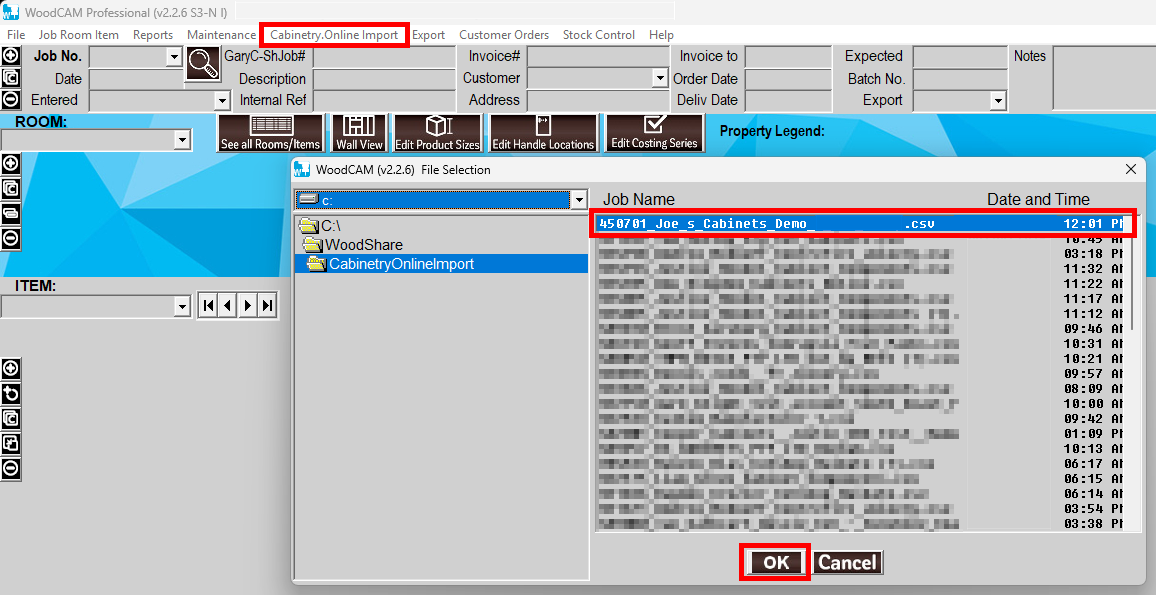

Click on the Cabinetry.Online Import tab at the top of the WoodCAM program, this will open the pop-up screen which allows you to select the job CSV file to import into WoodCAM.

Click on the job you'd like to import and select the OK button.

Image 8. (Importing Job to WoodCAM)

_______________________________________________________________________________________________________________________________

Step 3.

Click through import pop-ups and view job in WoodCAM

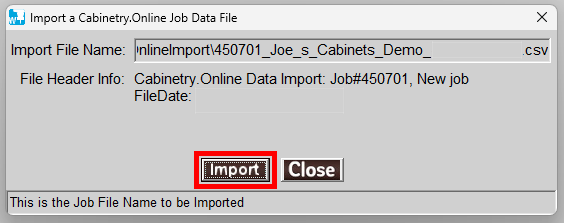

Click on the Import button in the 1st pop-up window and the job will process to be imported into WoodCAM.

Image 9. (WoodCAM Pop-up #1)

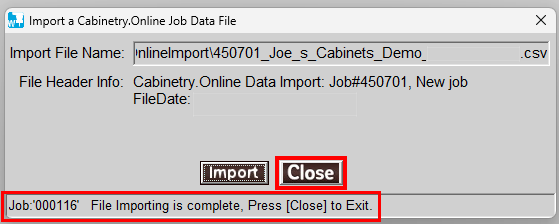

You will see a message saying File Importing is complete, Press [Close] to Exit.
When you see this message, you can click on Close, and the job will open in WoodCAM

Image 10. (WoodCAM Pop-up #2)

Please Note:
If there is an issue with importing a job file into WoodCAM, you will receive a white pop-up outlining the error.

Please take a screenshot of any error messages you receive during the import process and send it to the support team via the portal as it will affect the outcome of the job in CADCode.

Support Portal Link: CBC Support: Submit a ticket

The below guide will be your next steps after Importing a Job into WoodCAM from Cabinetry.Online

Next Steps: Process Jobs in WoodCAM & into CADCode
